HRV4Training Pro: Overview

User guide index: https://marcoaltini.substack.com/p/hrv4training-pro-user-guide

HRV4Training Pro features an overview page that aims at easing the interpretation of HRV data for your own analysis as well as your team data. The page shows the normal range, daily and weekly averages for HRV and heart rate data. You can optionally highlight each recording with different annotations, and add training load and subjective parameters as context in additional plots. Correlations are reported for the selected parameters.

This is probably the most useful page as it shows how things are changing over time, with respect to a user’s frame of reference (normal range), and context (annotations, training, subjective data).

The page is structured in 4 areas:

• Physiology

• Training load

• Subjective data

• Correlations between selected parameters

Physiology

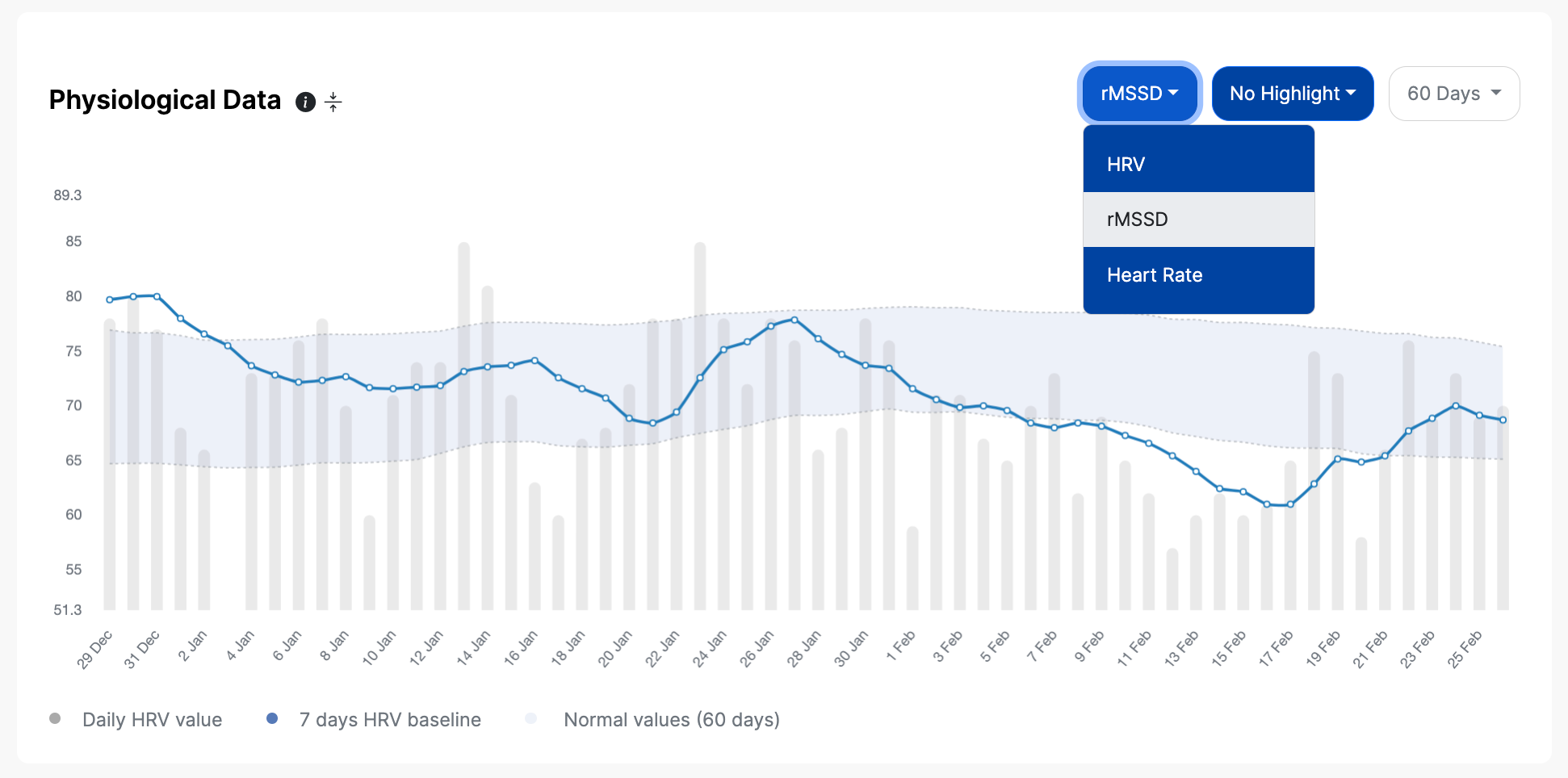

In the first graph, you can visualize HRV (a logarithmic transformation of rMSSD, as often reported in the scientific literature), rMSSD, or heart rate. For the selected parameter, HRV4Training Pro will show a 7-day moving average (what we call the baseline) and a normal range (the shaded area that represents a positive physiological response, i.e. stability).

This visualization allows you to easily determine which deviations are meaningful, and which ones are just part of normal day-to-day variability.

You can also color-code the bars based on a number of annotations or analytics, for example, training intensity distribution below:

Typically, I use the detected trend color coding, as this algorithm looks at multiple physiological parameters in the medium to long term, and provides additional insights beyond the daily scores or HRV data (more information about how this works, here).

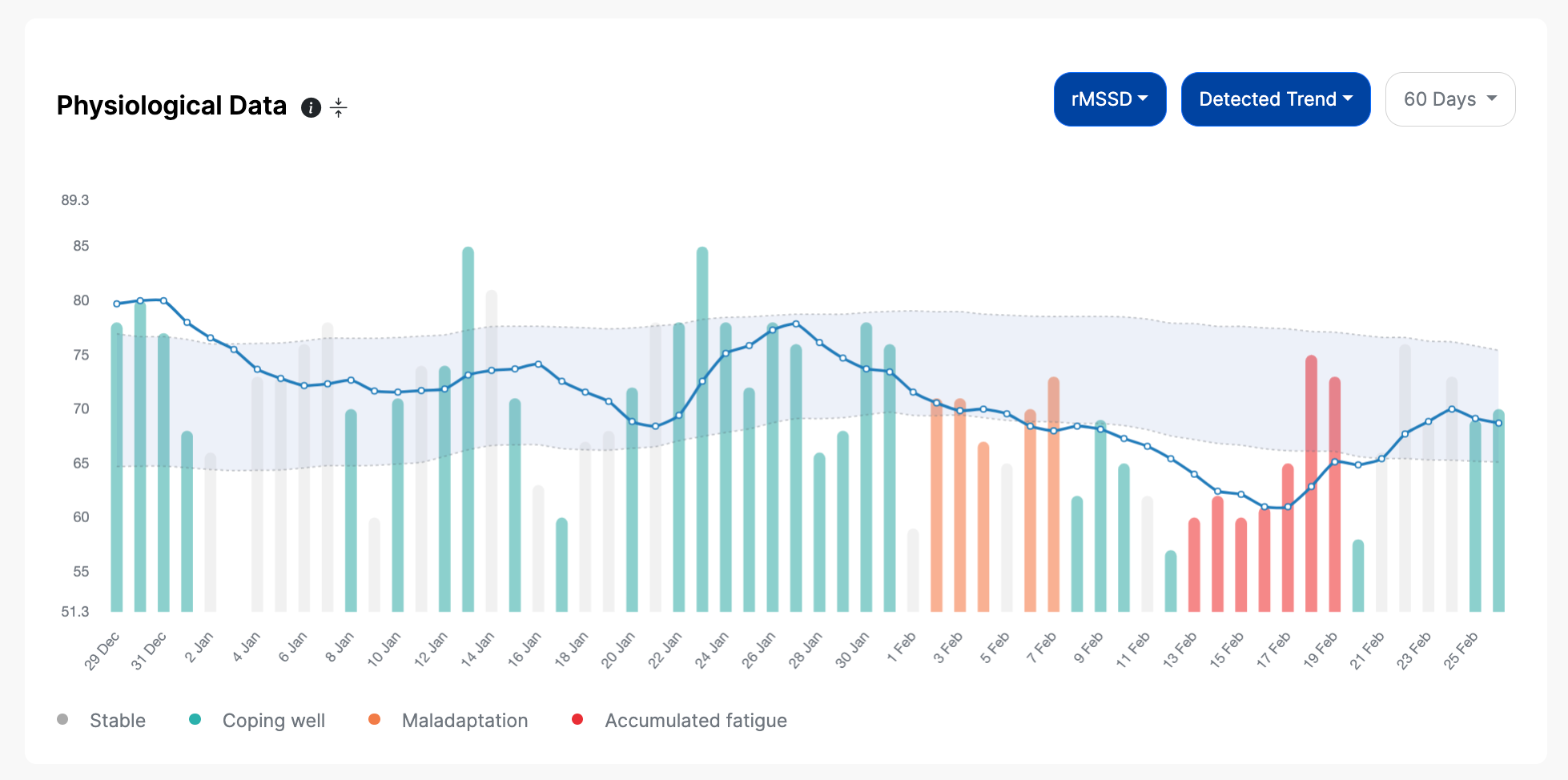

We can see below how a period of poor health followed by a minor injury are marked as maladaptation and accumulated fatigue:

Finally, we added the possibility to select custom date ranges, so that you can easily look back at specific periods to see your physiological response (e.g. in relation to a race or other event):

Each graph can also be collapsed, if you prefer to only look at the other ones:

Training load

Training load is provided as context on the Overview page. In particular, acute and chronic loads are computed with standard models using 7 and 42 days of data, so that you can quickly see how chronic load is trending, and periods of higher or lower acute load.

The training impulse variable used to build these plots can be selected among a number of parameters that might be relevant for your sport: distance, duration, RPE, RPE * duration, TSS, relative effort, etc.

You can also filter by sport type, in case you log more sports but are interested in checking training load for one sport in particular:

Subjective data

Subjective data is annotated in HRV4Training via the morning questionnaire and is a key aspect of using HRV effectively, as I cover in my guide to incorporating HRV in your training.

A number of subjective parameters can be optionally logged in the app, for example, fatigue, muscle soreness, lifestyle stress, sleep quality, motivation to train, perceived performance, environmental variables, etc.

We provide the 7-day moving average and normal range also for subjective data, as similarly to objective data, here we also have meaningful deviations, and deviations that are just part of day-to-day variability.

Correlations

In the new HRV4Training Pro, we have added a section that includes correlations between the selected parameters. There will still be a more comprehensive correlation page, but I think it can be valuable to quickly look at this analysis for the parameters we are normally interested in.

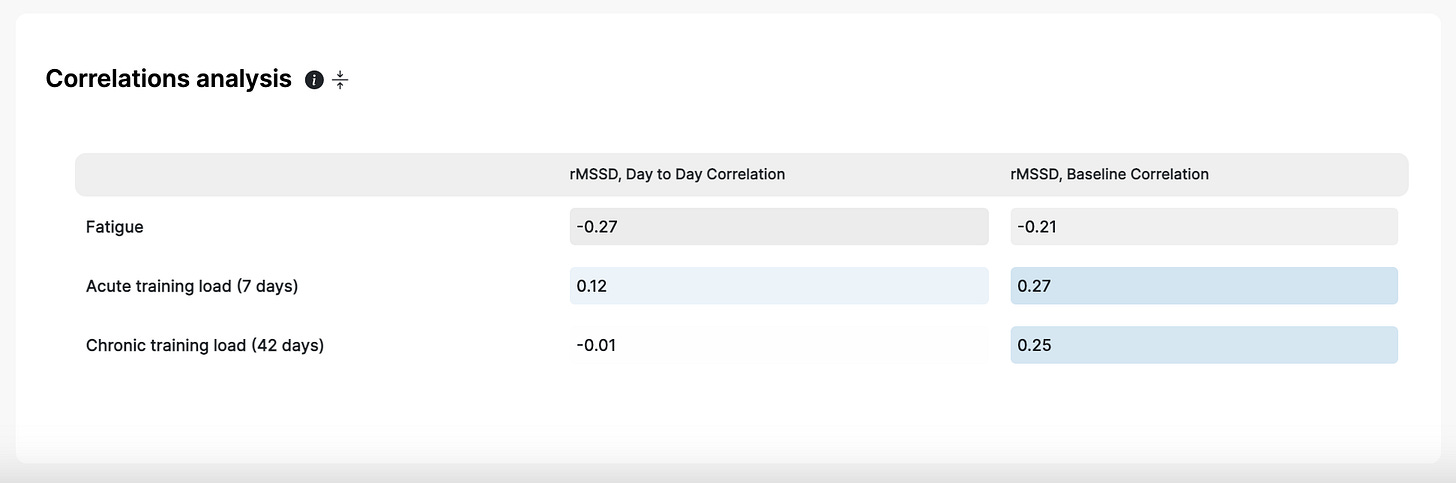

For example, if I select rMSSD in the physiology graph, and running distance as training load, as well as fatigue as subjective data, I would get the following:

The analysis looks at day-to-day correlations, so the daily relationship between these variables (typically quite weak as many different parameters can impact a single measurement) and baseline correlations, hence the longer-term relationship between trends in the same variables (which often shows stronger associations).

While we need to keep in mind the shortcomings of correlations, e.g. when we do see an association between variables, it might not necessarily mean that there is a causal relationship, and other variables might be driving the correlation (or it might just be a random outcome). Similarly, when we do not see an association, there could actually be one, which is confounded or hidden by other variables. This being said, looking at long-term correlations can be useful to capture possible associations.

I hope you’ll like the new Overview page and the improvements we implemented.

Please feel free to comment below in case of any questions or feature requests.

Thank you for your support.
