We have been working on adding compatibility for all new iPhone 16 models (with two or three cameras), and have already released updates for HRV4Training, HRV4Biofeedback (our deep breathing tool), and Camera HRV (our research app).

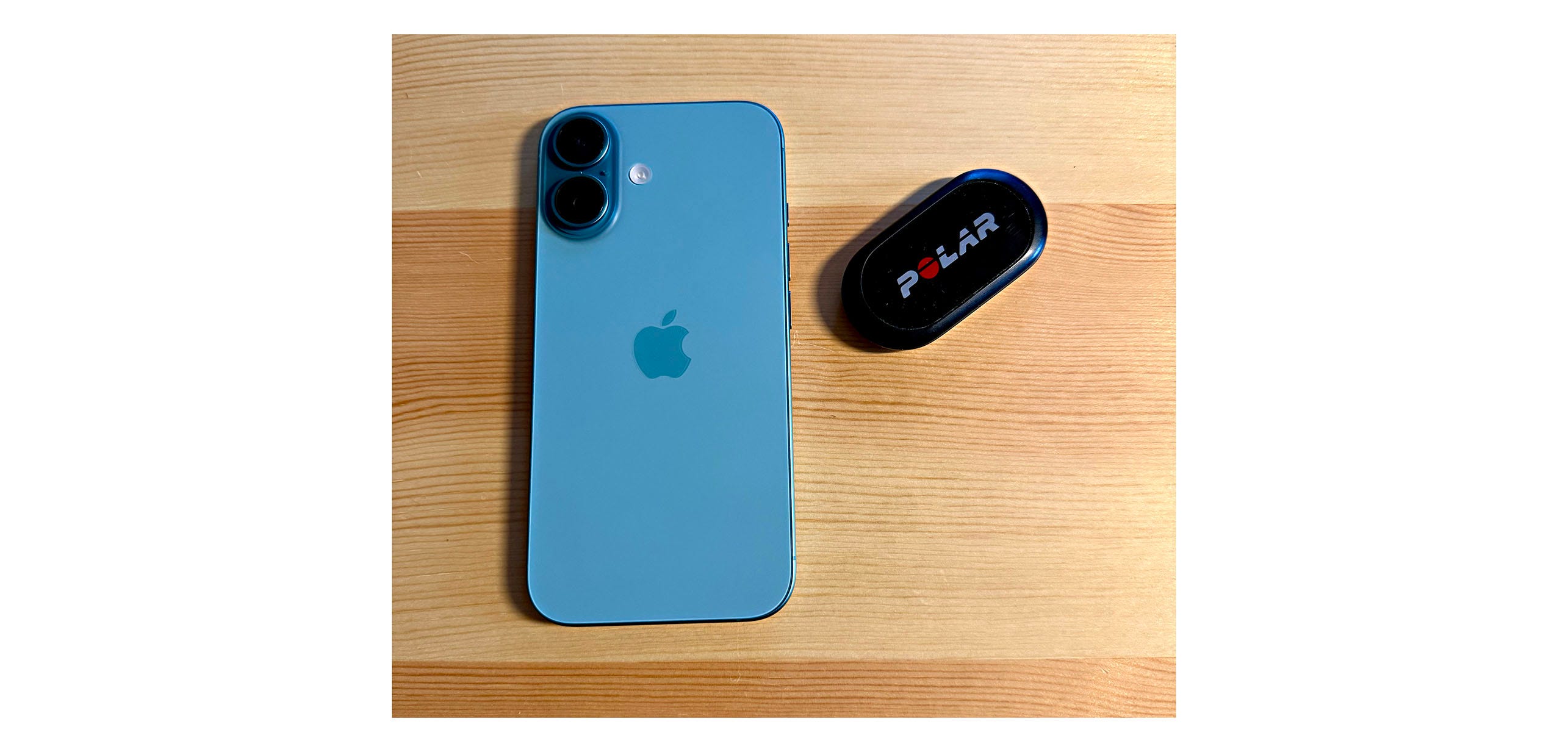

Below is some data collected using an iPhone 16 Pro and compared against a chest strap, the Polar H10. The protocol consisted of either normal breathing at rest, while seated, or deep breathing exercises. For data collection, I used the HRV Logger app to collect RR intervals from the chest strap, and the Camera HRV app to collect RR intervals using our camera-based algorithms. Both apps are available here.

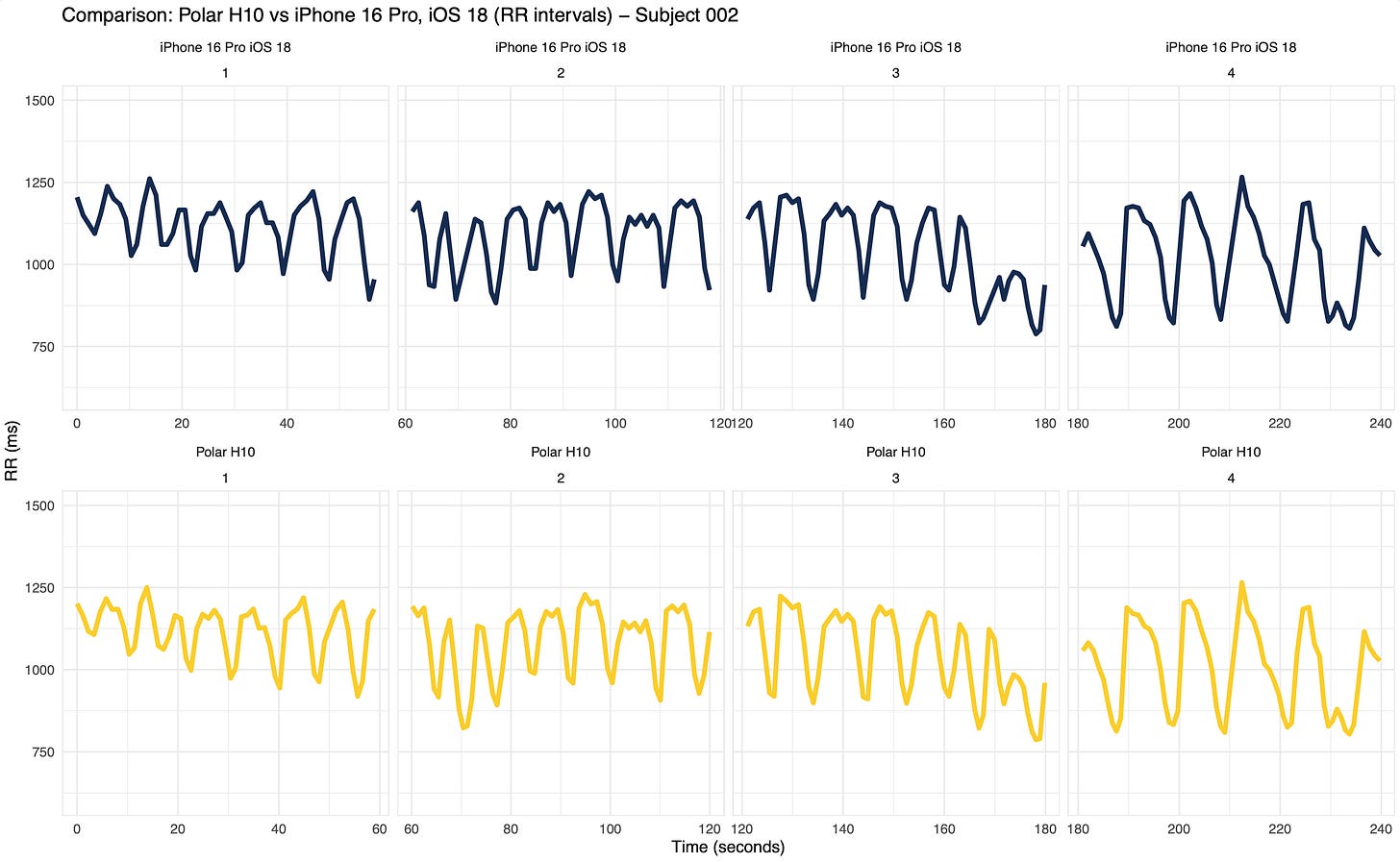

RR and PP intervals:
rMSSD computed from RR and PP intervals for the data above:
For participant 001 we have an ECG-derived rMSSD of 54.6 ms and a PPG-derived rMSSD of 53.2 ms. For participant 002 we have an ECG-derived rMSSD of 95.6 ms and a PPG-derived rMSSD of 96.8 ms. Overall, rMSSD over the 8 minutes of recordings is 75.1 ms for the Polar H10 and 75 ms for the camera-based algorithms. Not bad.
And a short video where you can see the raw PPG data in HRV4Training:
As always, we report signal quality at the end of the measurement, so that you can ensure the collected data is not artifacted (which you can also see visually in the PPG signal). Needless to say, you don’t get any of that using wearables.
The methods shown here are very similar to what we have described in our validation paper, which you can find here.
Enjoy.
